Guided Wave Radar Level Transmitter

Name: Guided Wave Radar Level Transmitter
Brand: WELK Level

Probe-based guided wave radar transmitter for narrow tanks, bypass chambers, low-dielectric liquids and selected interface applications.

PrincipleTDR guided wave radar

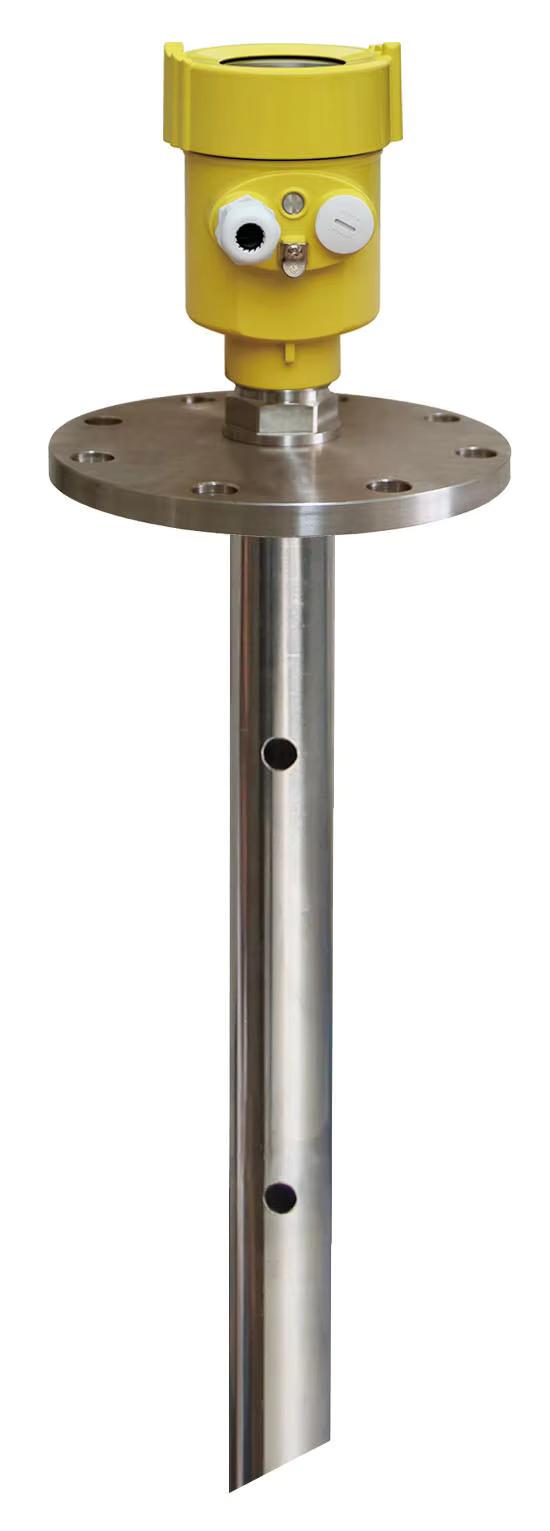

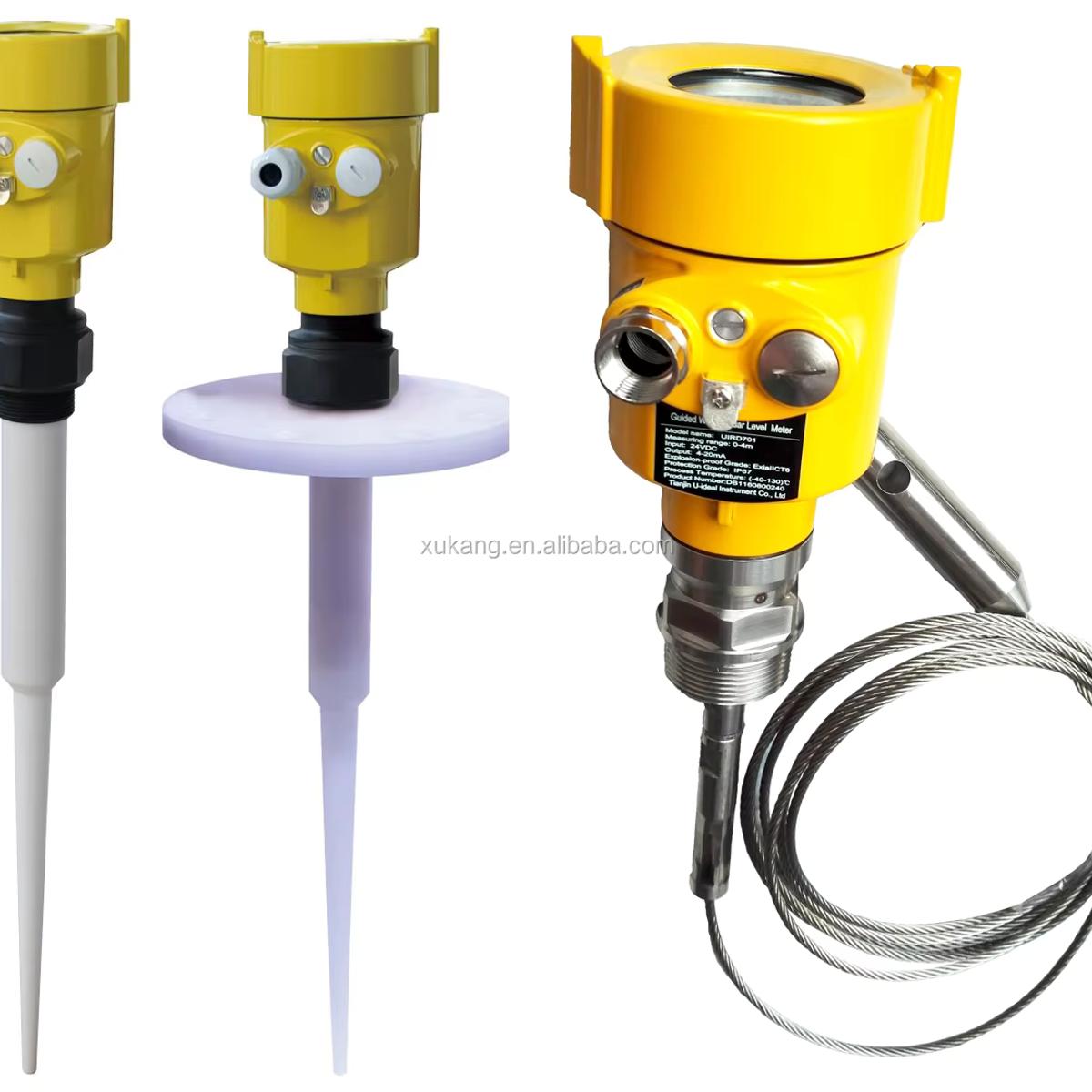

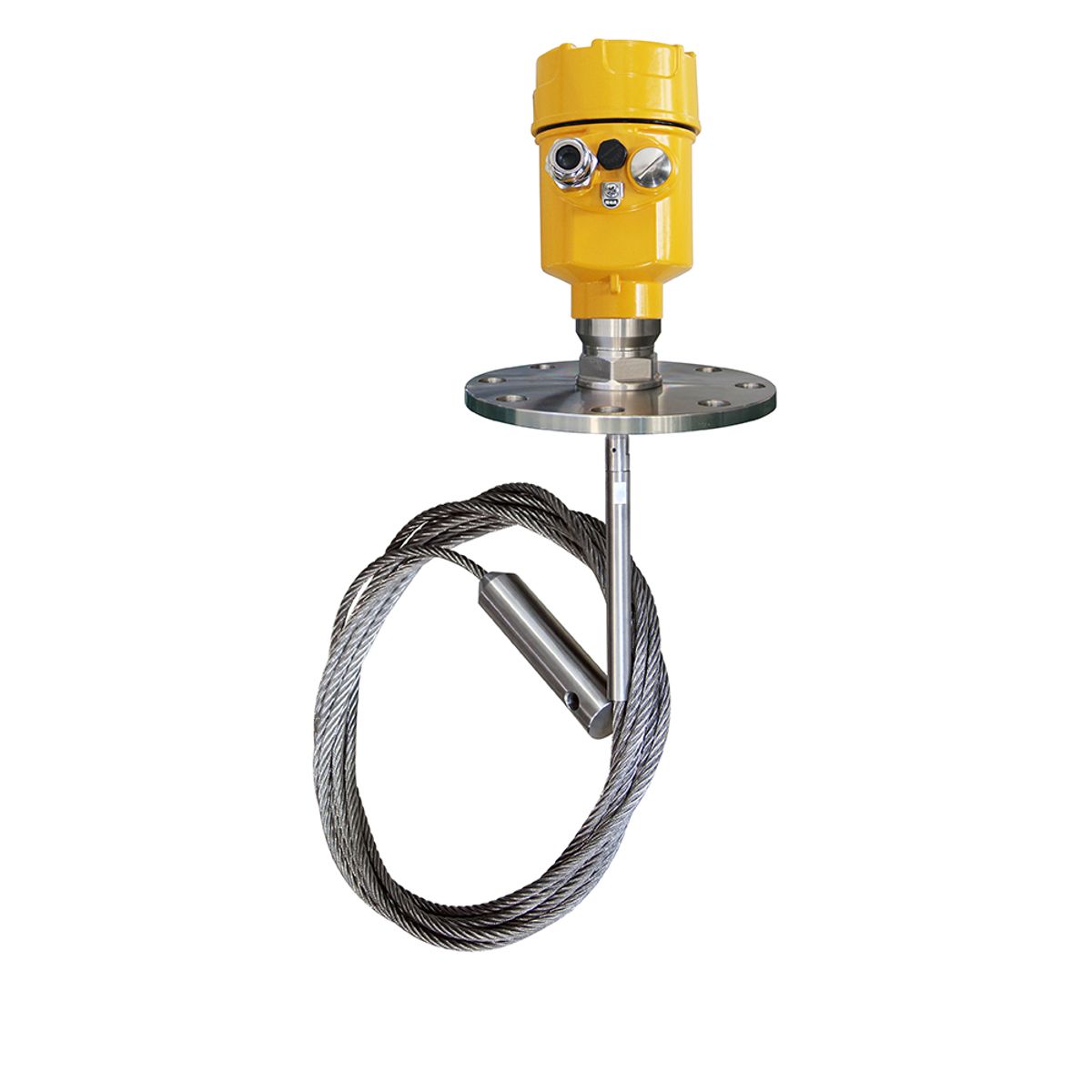

ProbeRod / cable / coaxial

Output4-20 mA / HART / RS-485

UseNarrow tanks and interface review

Request quote Attach files

Why choose· 01

Built for your duty.

Application-specific selection

narrow tanks, bypass chambers, low-dielectric liquids, interface review and vessels where a guided probe gives a cleaner signal path

Technical configuration window

Range class, output, materials and accessories are presented as configurable options so WELK can match the page to the real process data before quotation.

Configuration before quotation

Probe type, length, dielectric, viscosity, buildup, agitation, nozzle, anchoring and interface contrast decide the configuration.

Limits kept visible

Guided wave radar is contact measurement. Sticky buildup, strong agitation, long cable tension and coating must be reviewed before order.

Product details· 02

How it is selected & specified.

Guided Wave Radar Level Transmitter is presented as a WELK Level configurable product family, not as a single fixed catalogue code. The page focuses on realistic selection logic, installation limits and RFQ data that should be checked before quotation.

Narrow tanks, bypass chambers, low-dielectric liquids, interface review and vessels where a guided probe gives a cleaner signal path.

Probe type, length, dielectric, viscosity, buildup, agitation, nozzle, anchoring and interface contrast decide the configuration.

Guided wave radar is contact measurement. Sticky buildup, strong agitation, long cable tension and coating must be reviewed before order.

Specifications· 03

Guided Wave Radar Level Transmitter specification range.

Parameter	Value
Measuring principle	Time-domain reflectometry guided wave radar
Probe style	Rod, cable, twin probe or coaxial probe by application
Range class	Short-to-medium tanks; cable probes for longer ranges
Output	4-20 mA, HART or RS-485 Modbus by transmitter
Wetted materials	316L, PTFE, ceramic or coated parts by medium
Selection note	Dielectric, buildup, agitation and anchoring must be checked
RFQ data	Tank drawing, probe length, dielectric, viscosity, interface and connection

Applications· 04

Where this product works.

Bypass chambersNarrow tanksInterface serviceLow dielectric liquidsSelected solids

Application

Chemical Storage Tanks

Chemical and petrochemical storage

Boilers & Process Vessels

Pressure vessels and thermal systems

Wetted materials & output options.

316L PTFEStainless SteelCustom rangeProcess connectionOutput signalLogo/MarkingDocumentation package

Send medium, range, tank geometry, process connection and output signal for model review.

Packaging & shipping· 05b

Export packing as standard.

Packed for export with protected sensor/probe surfaces, cable or antenna support, product label, wiring note and requested inspection or calibration documents.

Packaging and documents →

Spec siblings· 05c

Spec siblings & common guided wave radar level transmitter specs.

Measuring principle Probe style Range class Output Wetted materials Selection note

FAQ· 06

Guided Wave Radar Level Transmitter questions.

When should I choose guided wave radar?

Choose it when a probe path is acceptable and free-space radar may see false echoes or interface information is required.

Can guided wave radar measure interface?

It can be reviewed when dielectric contrast is suitable and emulsion layers are not too thick.

What should I send for a quotation?

Send medium, measuring range, installation drawing or photo, process connection, output signal, power supply, environment and any certificate or document requirement.

Are final specifications fixed from this page?

No. Final range, accuracy, material, pressure, temperature, output and approval wording are confirmed from the selected order configuration.

Need guided wave radar level transmitter? Send the conditions.

Attach tank drawings, old instrument photos or datasheets if available.
