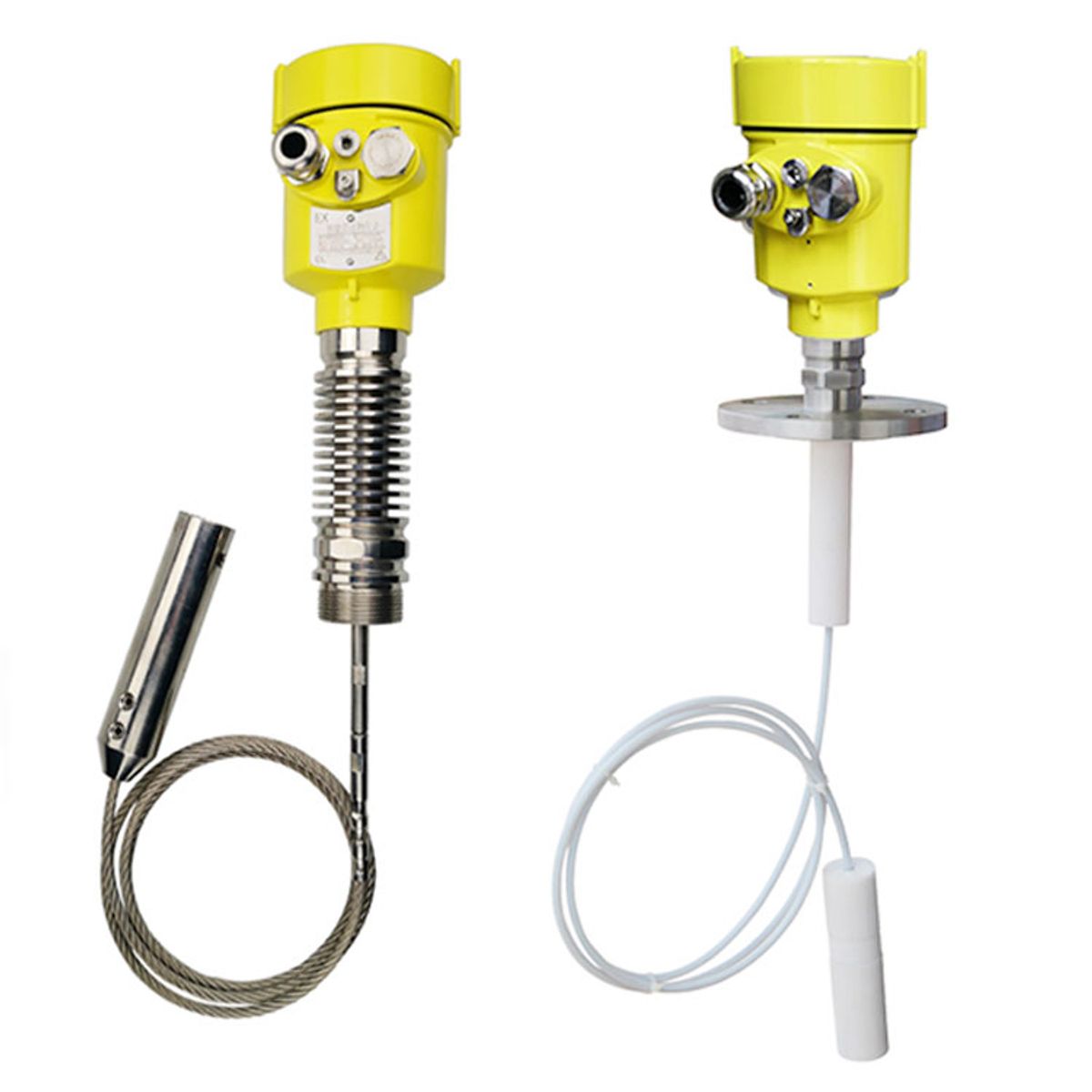

Cable Guided Wave Radar Level Transmitter

Name: Cable Guided Wave Radar Level Transmitter
Brand: WELK Level

Flexible cable guided wave radar for taller tanks and selected bulk solids where a rigid probe is impractical.

ProbeSingle or twin cable

RangeCustom cable length

Output4-20 mA / HART / RS-485

UseTall tanks and selected solids

Request quote Attach files

Why choose· 01

Built for your duty.

Application-specific selection

tall tanks, deep vessels and selected solids where a flexible cable probe can be installed and anchored or tension-reviewed

Technical configuration window

Range class, output, materials and accessories are presented as configurable options so WELK can match the page to the real process data before quotation.

Configuration before quotation

Cable length, tensile load, anchoring, tank height, roof nozzle, material movement and probe contact risk are checked.

Limits kept visible

A cable probe can be damaged by strong agitation, falling solids or high tensile loads if not anchored and specified correctly.

Product details· 02

How it is selected & specified.

Cable Guided Wave Radar Level Transmitter is presented as a WELK Level configurable product family, not as a single fixed catalogue code. The page focuses on realistic selection logic, installation limits and RFQ data that should be checked before quotation.

Tall tanks, deep vessels and selected solids where a flexible cable probe can be installed and anchored or tension-reviewed.

Cable length, tensile load, anchoring, tank height, roof nozzle, material movement and probe contact risk are checked.

A cable probe can be damaged by strong agitation, falling solids or high tensile loads if not anchored and specified correctly.

Specifications· 03

Cable Guided Wave Radar Level Transmitter specification range.

Parameter	Value
Measuring principle	TDR guided wave radar
Probe style	Single cable or twin cable by medium
Range	Cable length selected from tank height
Output	4-20 mA, HART or RS-485 by transmitter
Installation	Top insertion with anchoring or weight by project
Selection note	Review tensile load, buildup and moving material
RFQ data	Tank height, medium, dielectric, solids movement, anchoring and connection

Applications· 04

Where this product works.

Tall tanksBulk solids binsLow dielectric liquidsDeep vesselsInterface review

Application

Silo & Powder Level

Powder silos and bulk solids

Chemical Storage Tanks

Chemical and petrochemical storage

Wetted materials & output options.

316L PTFEStainless SteelCustom rangeProcess connectionOutput signalLogo/MarkingDocumentation package

Send medium, range, tank geometry, process connection and output signal for model review.

Packaging & shipping· 05b

Export packing as standard.

Packed for export with protected sensor/probe surfaces, cable or antenna support, product label, wiring note and requested inspection or calibration documents.

Packaging and documents →

Spec siblings· 05c

Spec siblings & common cable guided wave radar level transmitter specs.

Measuring principle Probe style Range Output Installation Selection note

FAQ· 06

Cable Guided Wave Radar Level Transmitter questions.

When is a cable probe used?

Use a cable probe when the measuring length is too long for a rigid rod and the process can safely accept a flexible probe.

Does a cable probe need anchoring?

Long probes or moving solids often need anchoring or tension review to prevent probe swing and damage.

What should I send for a quotation?

Send medium, measuring range, installation drawing or photo, process connection, output signal, power supply, environment and any certificate or document requirement.

Are final specifications fixed from this page?

No. Final range, accuracy, material, pressure, temperature, output and approval wording are confirmed from the selected order configuration.

Need cable guided wave radar level transmitter? Send the conditions.

Attach tank drawings, old instrument photos or datasheets if available.
