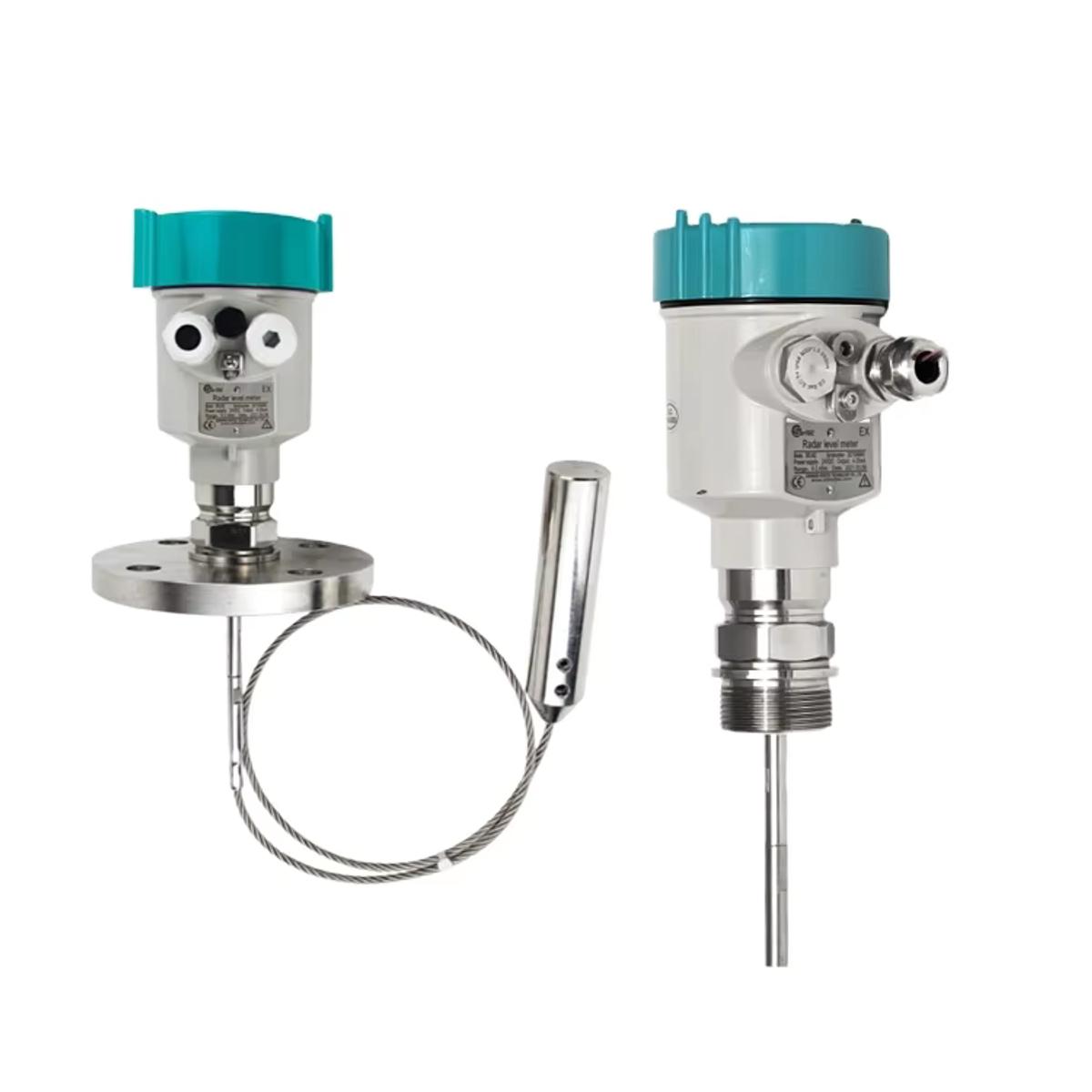

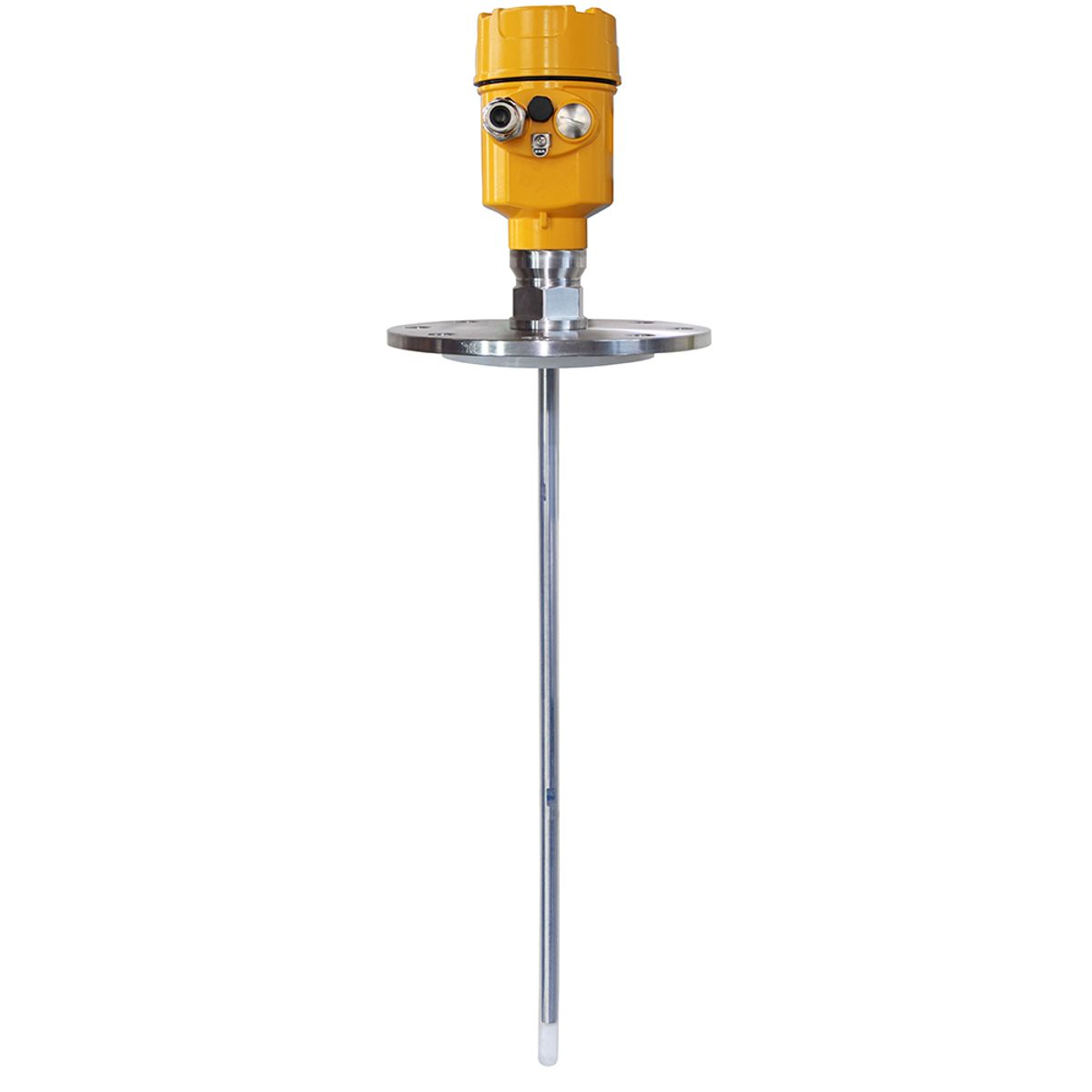

Rod Guided Wave Radar Level Transmitter

Name: Rod Guided Wave Radar Level Transmitter
Brand: WELK Level

Rigid rod guided wave radar for clean liquids, bypass chambers and shorter process vessels with stable probe geometry.

ProbeSingle rod / twin rod

RangeShort-to-medium

Output4-20 mA / HART

UseClean liquids and chambers

Request quote Attach files

Why choose· 01

Built for your duty.

Application-specific selection

short-to-medium tanks, clean liquids, bypass chambers, side chambers and applications where a rigid probe gives stable contact measurement

Technical configuration window

Range class, output, materials and accessories are presented as configurable options so WELK can match the page to the real process data before quotation.

Configuration before quotation

Rod length, nozzle, dielectric, viscosity, buildup, vessel clearance and process connection are confirmed before order.

Limits kept visible

Rigid rods are not ideal for very tall tanks, strong side load, heavy agitation or sticky coating without project review.

Product details· 02

How it is selected & specified.

Rod Guided Wave Radar Level Transmitter is presented as a WELK Level configurable product family, not as a single fixed catalogue code. The page focuses on realistic selection logic, installation limits and RFQ data that should be checked before quotation.

Short-to-medium tanks, clean liquids, bypass chambers, side chambers and applications where a rigid probe gives stable contact measurement.

Rod length, nozzle, dielectric, viscosity, buildup, vessel clearance and process connection are confirmed before order.

Rigid rods are not ideal for very tall tanks, strong side load, heavy agitation or sticky coating without project review.

Specifications· 03

Rod Guided Wave Radar Level Transmitter specification range.

Parameter	Value
Measuring principle	TDR guided wave radar
Probe style	Single rod or twin rod by application
Range class	Short-to-medium range by rod length
Media	Clean liquids, compatible chemicals and bypass chambers
Mounting	Top insertion, chamber mounting, thread or flange
Selection note	Review rod clearance, buildup, viscosity and dielectric
RFQ data	Probe length, medium, dielectric, connection, pressure and temperature

Applications· 04

Where this product works.

Bypass chambersClean process tanksChemical day tanksLow dielectric liquidsInterface review

Application

Chemical Storage Tanks

Chemical and petrochemical storage

Boilers & Process Vessels

Pressure vessels and thermal systems

Wetted materials & output options.

316L PTFEStainless SteelCustom rangeProcess connectionOutput signalLogo/MarkingDocumentation package

Send medium, range, tank geometry, process connection and output signal for model review.

Packaging & shipping· 05b

Export packing as standard.

Packed for export with protected sensor/probe surfaces, cable or antenna support, product label, wiring note and requested inspection or calibration documents.

Packaging and documents →

Spec siblings· 05c

Spec siblings & common rod guided wave radar level transmitter specs.

Measuring principle Probe style Range class Media Mounting Selection note

FAQ· 06

Rod Guided Wave Radar Level Transmitter questions.

Why choose a rod probe?

A rod probe keeps a fixed geometry and is suitable for shorter vessels, clean liquids and chambers.

Can rod guided wave radar handle sticky media?

Only after buildup review. Sticky coating on the probe can affect the signal.

What should I send for a quotation?

Send medium, measuring range, installation drawing or photo, process connection, output signal, power supply, environment and any certificate or document requirement.

Are final specifications fixed from this page?

No. Final range, accuracy, material, pressure, temperature, output and approval wording are confirmed from the selected order configuration.

Need rod guided wave radar level transmitter? Send the conditions.

Attach tank drawings, old instrument photos or datasheets if available.
